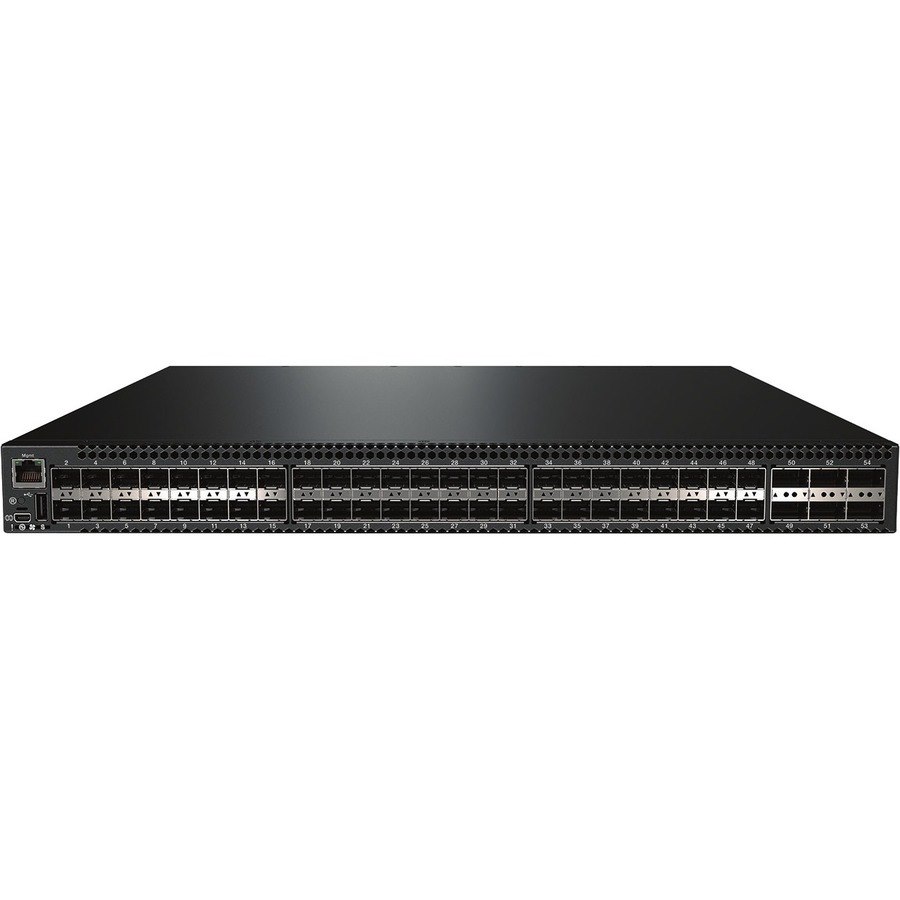

The Lenovo RackSwitch™ G8272 that uses 10Gb SFP+ and 40Gb QSFP+ Ethernet technology is specifically designed for the data center. It is ideal for today's big data, cloud, and optimized workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the hot-swap redundant power supplies and fans (along with numerous high-availability features) help provide high availability for business sensitive traffic.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www3.lenovo.com/au/en
- Brand Name
- Lenovo
- Product Line
- RackSwitch
- Packaged Quantity
- 1
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Uplink Port
- Yes
- Modular
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Expansion Slot
- 6 x 40 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
- Network Technology
- 1000Base-LX
- 1000Base-SX
- 1000Base-T
- 10GBase-SR
- 10GBase-LR
- 10GBase-ER
- 40GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 54.0
- Expansion Slot Type
- QSFP+
- SFP+
- Number of SFP+ Slots
- 48
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 44 mm
- Width
- 487 mm
- Depth
- 440 mm
- Weight (Approximate)
- 6.10 kg
